MF58 Glass Shell Temp Measurement NTC Thermistor 200k

Quick details

• Good stability and repeatability
• High reliability
• Wide range of resistance: 0.1~1000KΩ
• Tight tolerance on resistance and Beta values
• Small, light, strong package,
• Suitable for automatic insertion on thru-hole PCBs
• Rapid response
• High sensitivity

Description

The MF58 is a NTC thermistor which is manufactured using a combination of ceramic and semiconductor techniques. It is equipped with tinned axial leads and then wrapped with purified glass.

Application

• Household appliances (air conditioners, microwave ovens, electric fans, electric heaters etc.)
• Office equipment (copiers, printers etc.)
• Industrial, medical, environmental, weather and food processing equipment
• Mobile phone battery
• Apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.

Specification

Dimensions

Specification

Main Techno-Parameter • Zero power resistance range (R25): 0.1~1000KΩ • Available tolerances of R25: F= ±1% G= ±2% H= ±3% J= ±5% K= ±10% • B value (B25/50°C) range: 3100~4500K • Available tolerances of B value: ±0.5%, ±1%, ±2% • Dissipation factor: ≥2mW/°C (In Still Air) • Thermal time constant: ≤20S (In Still Air) • Operating temperature range: -55°C ~ +200°C • Rated Power: ≤50mW

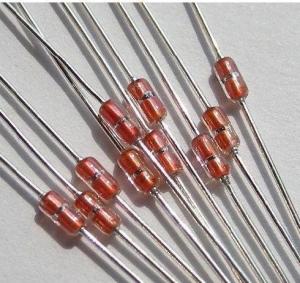

MF58 Glass Shell Temp Measurement NTC Thermistor 200k Images
